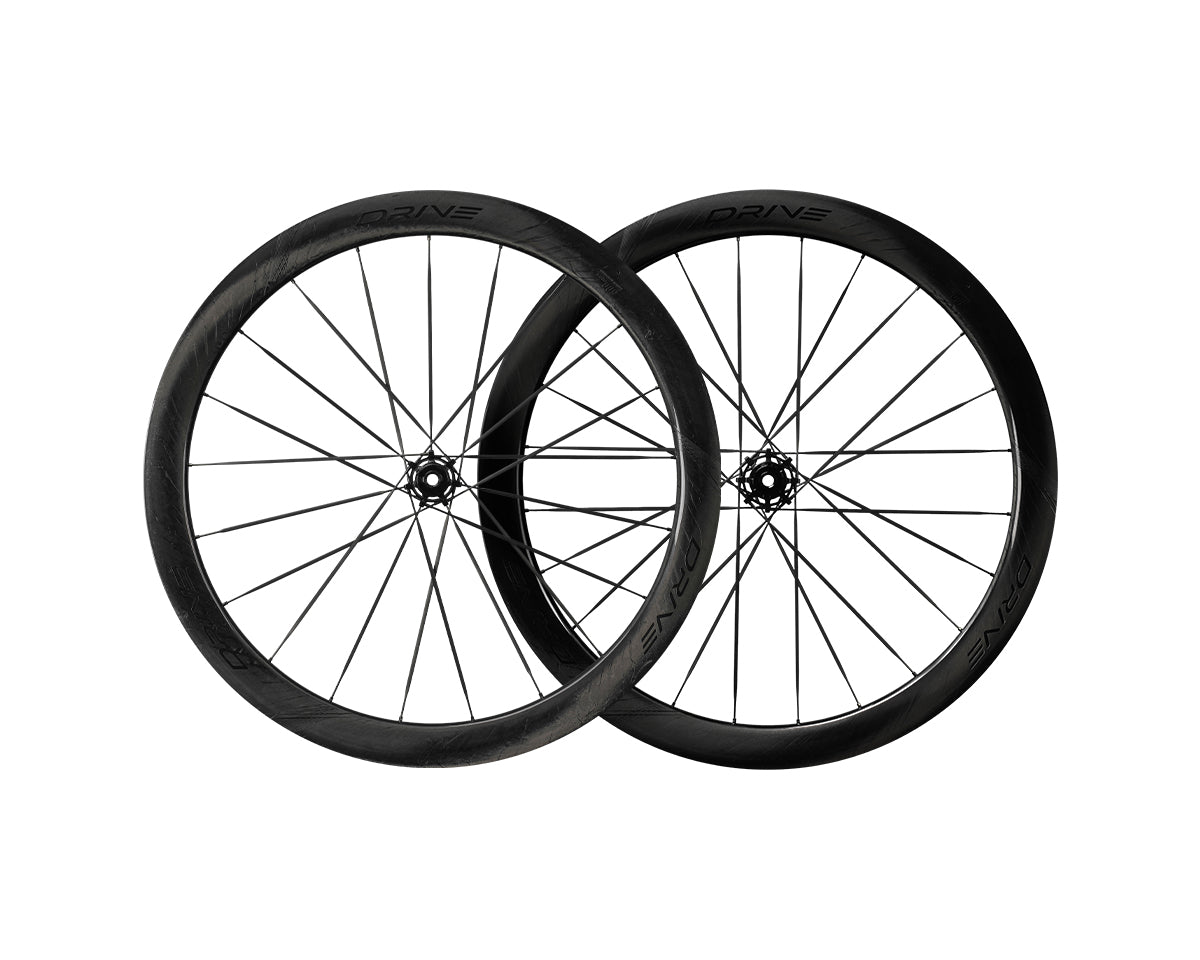

Elitewheels Drive 50D II carbon road wheelset

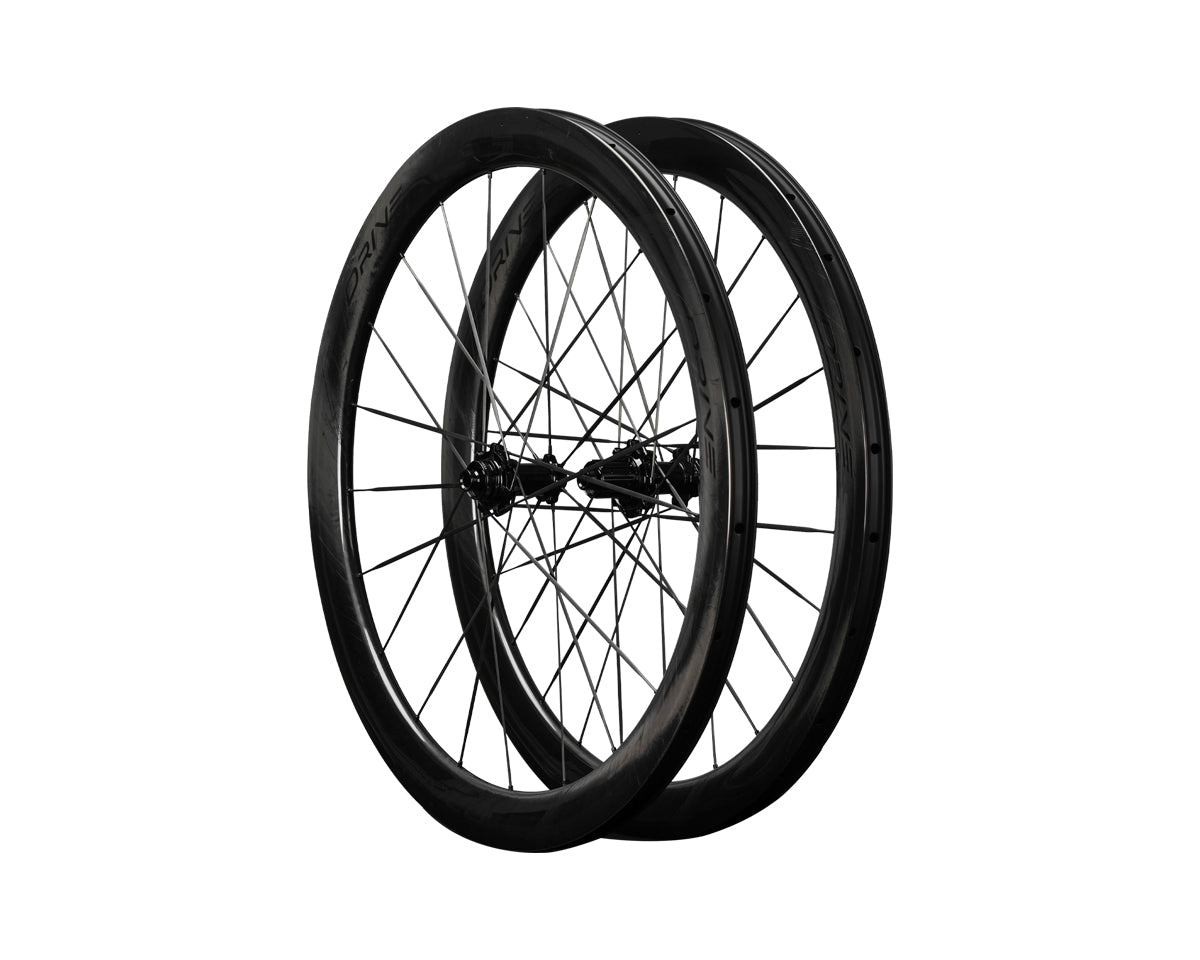

Elitewheels Drive 50D II carbon road wheelset angled view

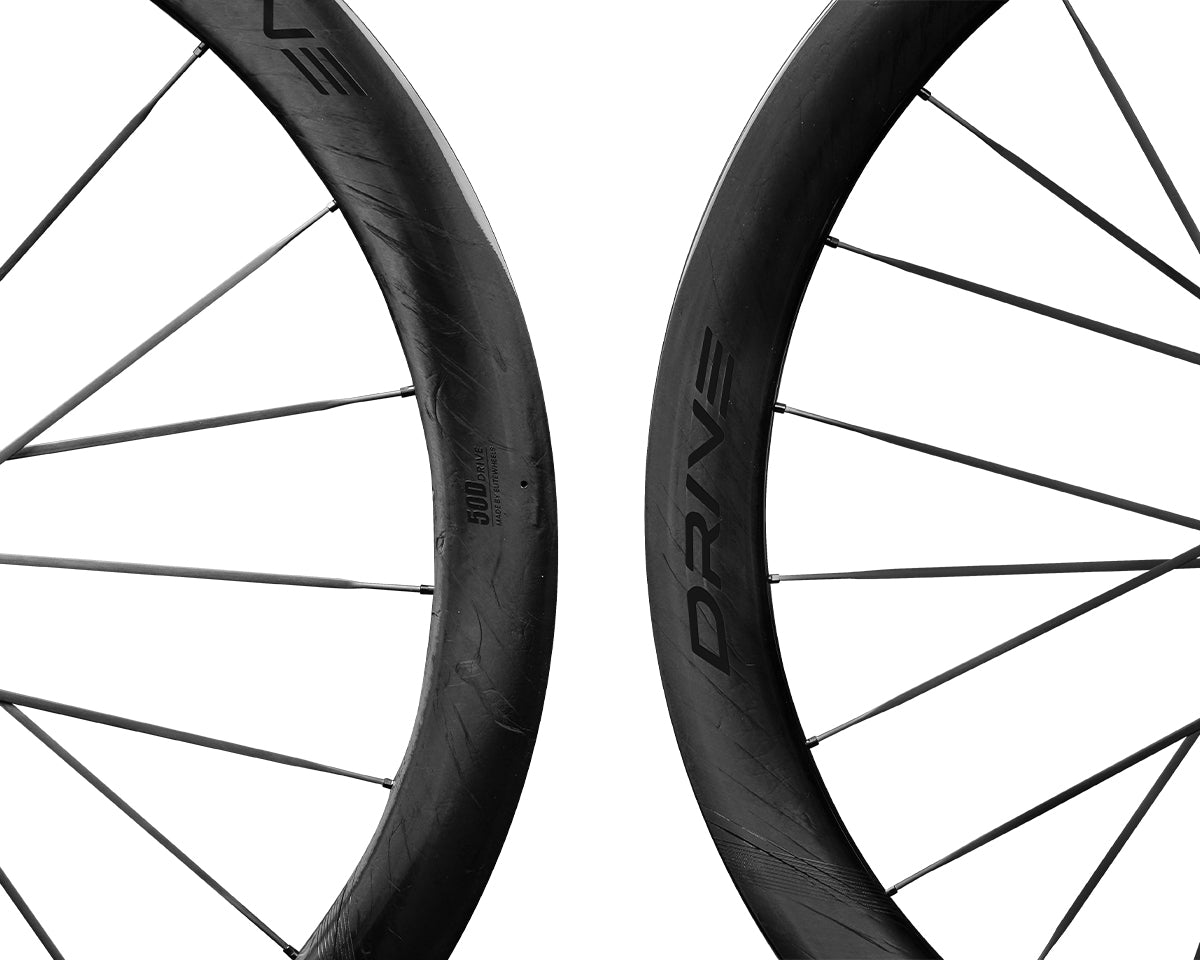

Elitewheels Drive 50D II carbon rim and decal detail

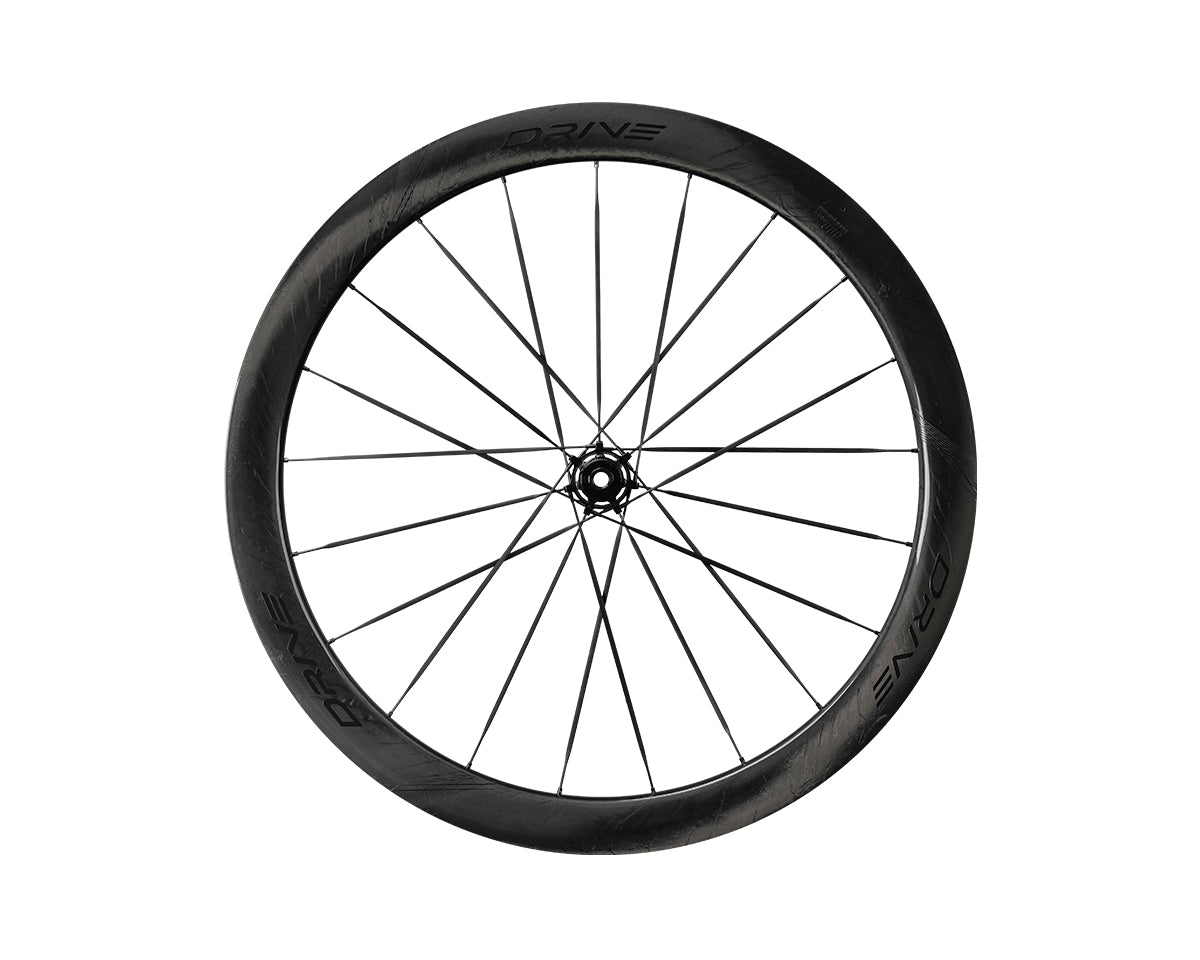

Elitewheels Drive 50D II carbon road wheel

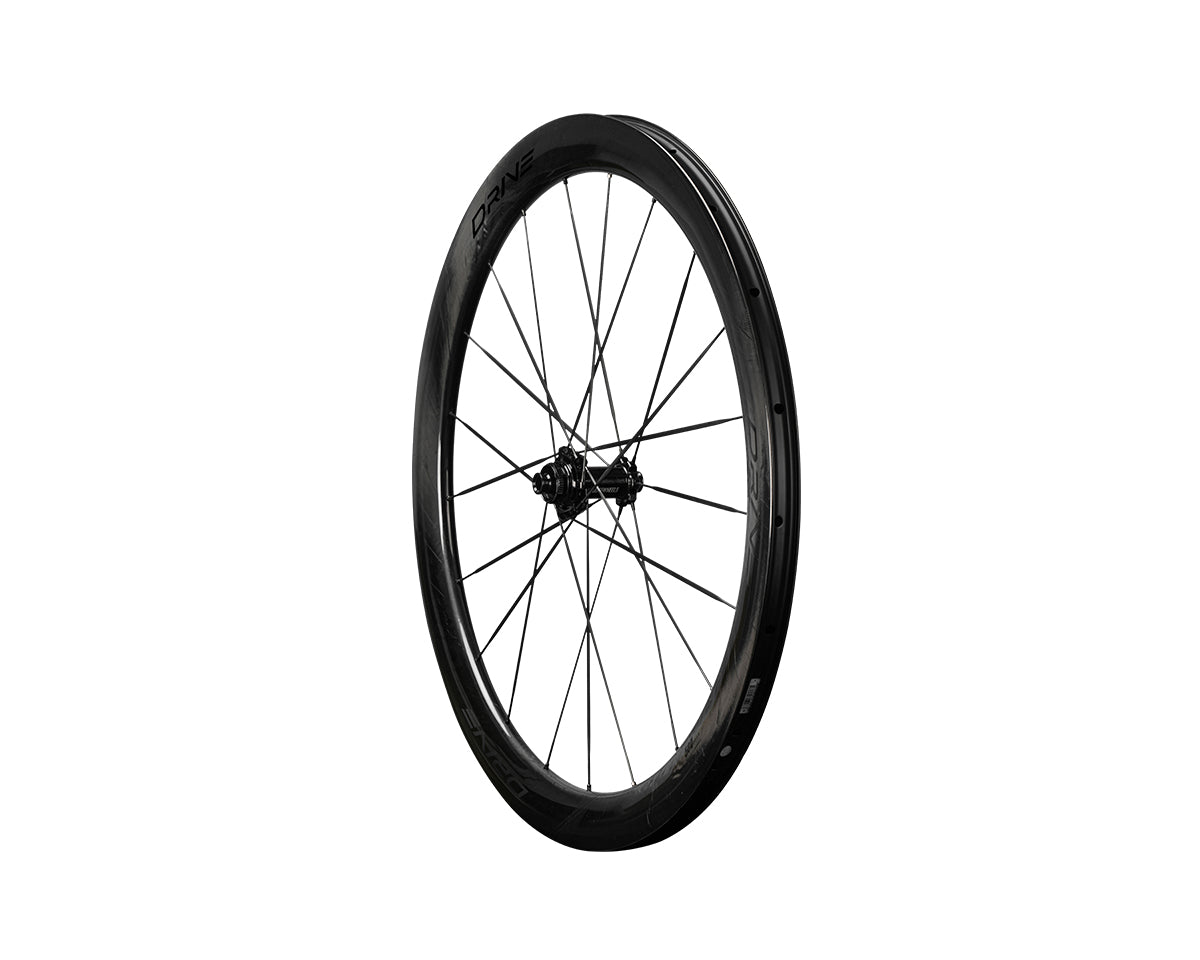

Elitewheels Drive 50D II wheel detail

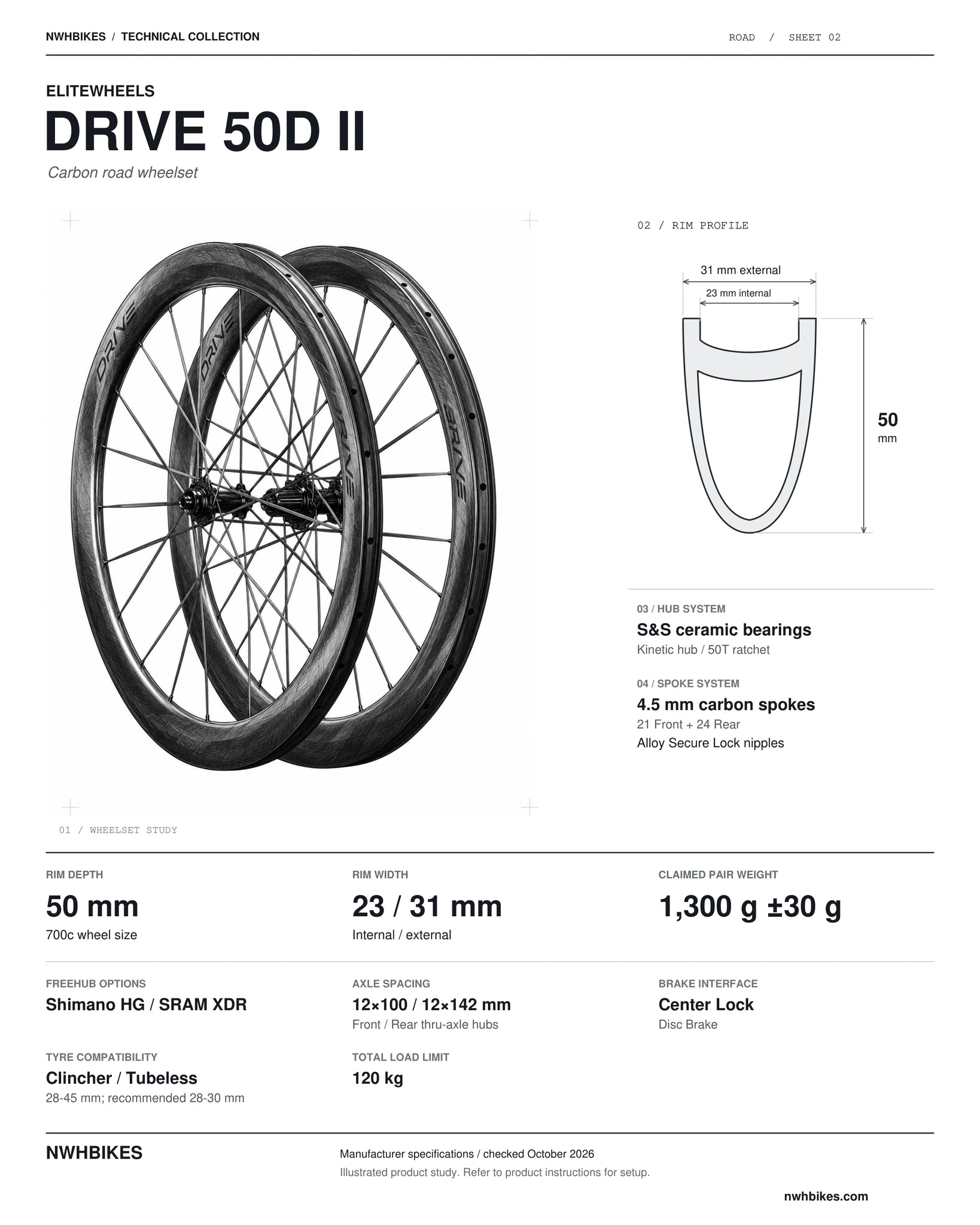

Elitewheels Drive 50D II technical specifications and wheelset overview
Elitewheels Drive 50D II 50 mm carbon rim detail at NWHBIKES Melbourne
Elitewheels Drive 50D II Kinetic rear hub and Shimano HG freehub detail

Elitewheels Drive 50D II Carbon Road Wheelset

Regular price
$1,899.00
Sale price
$1,899.00
Tax included. Shipping calculated at checkout.

IN STOCK IN MELBOURNE | Next business day dispatch

Price is for the complete wheelset: front and rear wheels.

  • Free standard shipping throughout Australia, including regional addresses and Perth.
  • Free installation in Box Hill for wheelsets purchased from NWHBIKES, by appointment. Tyres, cassette, brake rotors and any additional parts or consumables are separate.
  • Shimano HG or SRAM XDR: one wheelset is available, fitted with the freehub you need. Tell us HG or XDR in your order note, or email us after ordering. We confirm the fitment before dispatch.

Paid orders for in-stock wheels are dispatched the next business day. Delivery time depends on your address; dispatch is not the delivery date.

Need help with compatibility or delivery? Email info@nwhbikes.com with your bike model, cassette and postcode.

Fast enough to race. Light enough to climb.

The Elitewheels Drive 50D II is the premium all-round road wheelset in our Elitewheels range.

With a 50 mm carbon rim, 4.5 mm carbon spokes, ceramic bearings and a weight of just 1,300 ± 30 g per pair, it balances low weight with the aerodynamic advantage of a deeper road wheel.

For riders looking for one fast wheelset for climbing, rolling roads, fast bunch rides and racing, this is the Drive model we would choose.

A$1,899 for the complete wheelset (front + rear). Free standard shipping is available within Australia.

Is the Drive 50D II for you?

Best for: road riders wanting one premium wheelset for fast bunch rides, climbing, racing and everyday performance riding.

Choose it if you want: low weight, a 50 mm aerodynamic carbon rim, carbon spokes, ceramic bearings and a 50T ratchet hub.

Before you order

  • Bike fit: 700c disc brake bike with 12 × 100 mm front and 12 × 142 mm rear thru axles.
  • Brake rotors: Center Lock.
  • Freehub: Shimano HG or SRAM XDR.
  • Tyres: tubeless ready, with 28–30C recommended and 28–45C compatible.

Not sure? Send NWHBIKES your bike model, drivetrain and current cassette. I can confirm compatibility before you order.

Elitewheels Drive II: manufacturer video.

Why the 50D II?

A 50 mm rim gives the Drive 50D II enough depth to provide a meaningful aerodynamic advantage without moving into the more specialised territory of very deep road wheels.

The rim measures 23 mm internally and 31 mm externally and is designed around modern 28–30C road tyres.

That wider tyre-and-rim combination helps create a smoother aerodynamic profile while also allowing modern road tyres to run at sensible pressures for grip and comfort.

Aerodynamics

Elitewheels wind tunnel testing. Manufacturer footage.

Elitewheels developed the second-generation Drive rim using CFD simulation, wind-tunnel testing and real-world testing.

The U/V-shaped rim profile is designed to manage airflow around the wheel and improve stability when the wind is coming from the side.

During testing at the Silverstone Engineering Hub in the UK, Elitewheels reports that the Drive II achieved a 2.84% reduction in CdA compared with the previous generation. At a -15° yaw angle, the Drive 50D II recorded a 5.2 watt reduction in drag under the same test conditions.

Real-world gains will vary with rider position, speed, tyres, bike setup and wind conditions, but the important point is that the rim shape has been developed and tested as an aerodynamic system rather than simply being made 50 mm deep.

Carbon spokes

The Drive 50D II uses 4.5 mm bladed carbon spokes with 21 spokes front and 24 rear.

Unlike bonded carbon-spoke systems, the spokes are individually replaceable, which is something we particularly like from a servicing point of view.

Carbon spokes also allow Elitewheels to combine a low wheel weight with high lateral stiffness while keeping the spoke blade aligned aerodynamically.

Kinetic ratchet hub

The Drive II uses Elitewheels' Kinetic hub with a 50-tooth star-ratchet mechanism and conical ratchet interface.

The hubs use S&S ceramic bearings and additional sealing intended to reduce contamination and water ingress.

Specifications

Wheel size 700c
Intended use Road
Rim depth 50 mm
Internal width 23 mm
External width 31 mm
Tyre setup Clincher / tubeless-ready
Compatible tyres 700 × 28–45C
Recommended tyres 700 × 28–30C
Spokes 4.5 mm carbon
Spoke count 21 front / 24 rear
Hub Elitewheels Kinetic
Freehub system 50T ratchet
Bearings S&S ceramic
Brake interface Center Lock
Front axle 12 × 100 mm
Rear axle 12 × 142 mm
Freehub options Shimano HG / SRAM XDR
Weight 1,300 ± 30 g / pair
Maximum system weight 120 kg
Finish Glossy Marbling Black
Certification UCI Approved / CE Certified

Maximum system weight includes rider, bicycle, clothing, luggage and equipment.

Manufacturer wheel weight is measured without rim tape and tubeless valves.

What's included

  • Front Drive 50D II wheel
  • Rear Drive 50D II wheel
  • Selected Shimano HG or SRAM XDR freehub
  • Rim tape installed
  • Tubeless valves installed

Tyres, cassette and brake rotors are not included.

Shimano HG or SRAM XDR?

Choose the freehub that matches your cassette.

Not sure which one you need? Send NWHBIKES your bike and drivetrain details and we can confirm compatibility before you order.

Installation & support in Melbourne

NWHBIKES can professionally install and set up your new wheelset, including cassette and rotor installation, tyres and tubeless setup.

The Drive 50D II is covered by the Elitewheels 3 year manufacturer warranty against manufacturing defects, with NWHBIKES handling warranty enquiries and the claim process for our customers throughout Australia. If you bought your wheels from NWHBIKES, contact Julian at info@nwhbikes.com first. Claims are assessed under the applicable warranty terms.

Compare the NWHBIKES Elitewheels range

Marvel 50D II
Best value road option. 50 mm carbon rims, steel aero spokes and easy long term serviceability. A$1,299.

Drive 50D II
Premium road option. 50 mm carbon rims, carbon spokes, ceramic bearings and the Kinetic 50T ratchet hub at about 1,300 g per pair. A$1,899.

Drive G45 SS
Gravel and all road option. 45 mm carbon rims, 24 mm internal width and replaceable Sapim CX Ray steel spokes. A$1,499.

Not sure which one fits your riding? Send NWHBIKES your bike, drivetrain, tyre size and the type of riding you do. I can help narrow it down before you order.

Drive 50D II FAQ

Is the A$1,899 price for both wheels?

Yes. The price is for the complete front and rear Elitewheels Drive 50D II wheelset.

Can the Drive 50D II be set up tubeless?

Yes. The rims are tubeless ready, and rim tape and tubeless valves are included and installed.

What tyre size should I use?

Elitewheels lists compatibility from 700 × 28C to 45C, with 28–30C recommended for road use. Final tyre choice should also suit your bike's frame and fork clearance.

Do I need Shimano HG or SRAM XDR?

Choose the freehub that matches your cassette. Shimano road cassettes normally use HG, while SRAM AXS road cassettes commonly use XDR. If you are unsure, send NWHBIKES your bike model and drivetrain details before ordering.

Will these wheels fit my bike?

The Drive 50D II uses 12 × 100 mm front and 12 × 142 mm rear thru axles with Center Lock disc brake mounts. NWHBIKES can confirm compatibility before you order.

Can NWHBIKES install the wheelset?

Yes. NWHBIKES can install the wheelset and can also fit your cassette, brake rotors, tyres and tubeless setup. Installation is free in Box Hill for wheelsets bought from NWHBIKES, by appointment. Additional parts and consumables are charged separately.

Do you ship the Drive 50D II within Australia?

Yes. Free standard shipping is available within Australia. Workshop collection in Melbourne can also be arranged.

What warranty does the Drive 50D II have?

The wheelset is covered by the Elitewheels 3 year manufacturer warranty against manufacturing defects, with NWHBIKES handling warranty enquiries and the claim process for our customers throughout Australia. If you bought your wheels from NWHBIKES, contact Julian at info@nwhbikes.com first. Claims are assessed under the applicable warranty terms.
